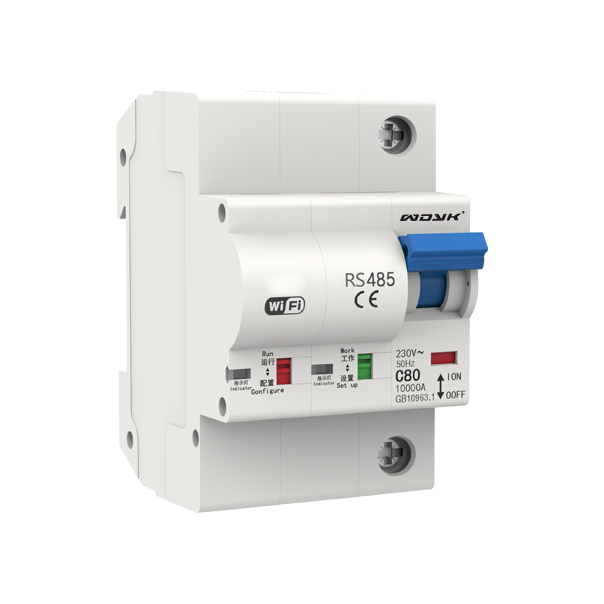

WIFI/RS485 circuit breaker

Rated voltage:AC230V(1P, 2P)/ AC400V(3P, 4P)


Rated frequency:50Hz


Pole number:1P, 2P, 3P, 4P


Pollution level: Level 2


Protection level:IP20


Shell class rated current:125A


Rated current: 125A, 100A, 80A, 63A, 40A, 32A


Instantaneous tripping:C


Rated impulse withstand voltage:6000V


Control level voltage:AC220V


Execution Criteria:GB 10963.1, IEC 60898-1, GB/T 21706


Control mode: work mode, pairing mode


Phase leakage current: Steady current consumed per phase line ≤0.2mA


Dimensions: in line with State Grid "Q/GDW 11421-2015", South Network "Market [2016] No. 43 Annex 1"


Drop test: in accordance with GB/T4857.18


EMC Test: in accordance with GB/T 18499-2008


Surge test: in accordance with GB/T 17626.5 voltage 4.0kV (±10%)


Transient oscillating current: in accordance with GB/T 18499 400V 200A


Fast transient bursts: in accordance with GB/T 18499 4kV


RF electromagnetic field radiation: in accordance with GB/T 18499 Level 3


Common mode conducted disturbance: in accordance with GB/T 18499 1kHz ~ 150kHz


Electrostatic discharge: in accordance with GB/T 18499 air discharge 15kV contact discharge 8kV


Mechanical life:>12000


Electric life:>6500


Insulated Housing:PA66-DSM


Moving contact:AgNi10


Static contacts:AgCdo15


Arc extinguishing device:Q235-A


Extreme use temperature:-40°C~+70°C


Rated short-circuit breaking capacity:In 80: Icn=10kA Ics=7.5kA, In 125:Icn=6kA Ics=6kA


Dust test: in accordance with GB 4208, 8h


Salt spray test: in accordance with GB/T 2423.17, 48h


Professional benefits: Higher metrics, wider application environment, and more stable operation
